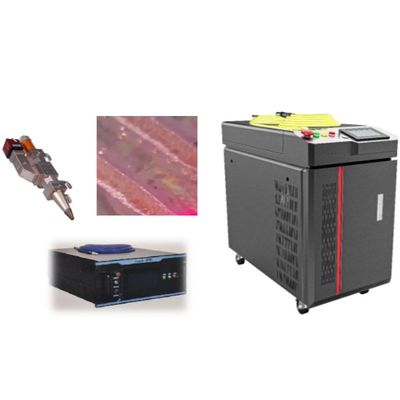

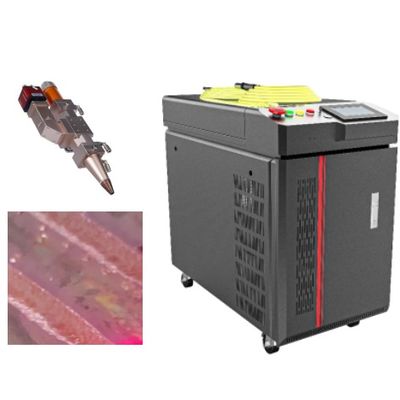

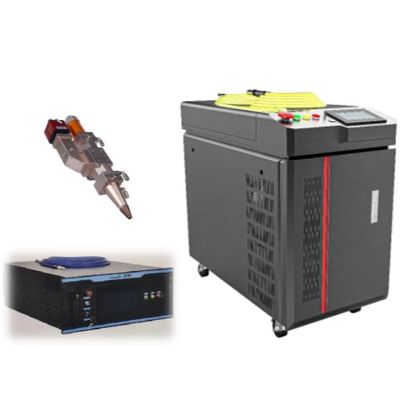

Blue Laser Hybrid Welder with ±0.5% Power Stability - Ideal for Automobile Industry

Blue Laser Hybrid Welder with ±0.5% Power Stability - Ideal for Automobile Industry

Nama merek:	HanWei
Nomor Model:	HW-B
Moq:	1 set
harga:	USD / Set
Ketentuan Pembayaran:	T/t
Kemampuan Penyediaan:	2000 set / tahun

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Shenzhen, Cina

Sertifikasi:

Kekuatan laser:

1000W

Stabilitas daya:

± 0,5 %

Panjang gelombang (nm):

445nm

Jenis gas:

CO-AXIAL / GAS SIDE

Struktur kepala:

T / f / y

Suhu operasi (℃):

5-40

Diameter inti:

200 μm / 0,22 Na

Metode pendinginan:

Pendingin air

Bahan pengelasan:

Tembaga / Emas / Perak

Sinar laser:

Stasioner / Goyang

Koneksi:

D80 / QBH

Berat kepala:

4 kg

Kemasan rincian:

Ekspor Plywood Packing

Menyediakan kemampuan:

2000 set / tahun

Deskripsi Produk

Blue Laser Hybrid Welder with ±0.5% Power Stability - Ideal for Automobile Industry

Blue Laser Hybrid Welder with ±0.5% Power Stability - Ideal for Automobile Industry Description:

Hanwei's blue laser welding systems, crafted to align with the stringent standards of premium products from Europe, America, and Japan, integrate core technologies developed through independent innovation. These include an in-house blue laser source, an exclusive blue laser control system, and a set of tailor-made blue laser welding heads—innovations that mark a new chapter in laser welding for highly reflective materials.

Specifically developed for joining reflective metals like copper, silver, and gold, this system capitalizes on the unique ultra-high absorption traits of the blue laser spectrum. Reflective materials absorb more than 70% of blue wavelengths, offering notable advantages in processing high-reflectivity substrates: it enables spatter-free operation, provides exceptional stability, ensures superior weld quality, and showcases the groundbreaking capability to achieve double-sided formation via single-sided welding.

Blue Laser Hybrid Welder with ±0.5% Power Stability - Ideal for Automobile Industry 0

Blue Laser Hybrid Welder with ±0.5% Power Stability - Ideal for Automobile Industry Features:

1.Self-developed, designed and manufactured the complete chain from laser source,control system and laser welding head.

2.The welding process generates minimal spark spatter while delivering high-quality welds with exceptional consistency.

3.Used for welding materials with high reflectivity to laser such as copper, gold, silver, etc.

4.Post-welding surfaces exhibit smoothness, fullness, and an aesthetically refined appearance.

Blue Laser Hybrid Welder with ±0.5% Power Stability - Ideal for Automobile Industry Technical Parameters:

Model	HW-B
Cooling Method	Water Cooling
Head Option	Blue Laser Hybrid
Power Stability	± 0.5 %
Modulation Frequency (Hz)	1-10000
Laser Core	50um / 100um
Wavelength(um)	445 nm
Laser Power	1000 W
Pulse Rising Time (μs)	＜ 20
Laser Beam	Stationary / Wobble
Head Weight	4 Kg
Machine Size	1000450850mm
Core Diameter	200 μm / 0.22 NA

Blue Laser Hybrid Welder with ±0.5% Power Stability - Ideal for Automobile Industry Application:

1.Automobile industry.
2.Semiconductor Industry.

3.Jewelry industry.
4.Computer, Communication, Consumer Electronics - 3C Industry.
5.New Energy Resources - Battery Busbar with Copper or Aluminium.

Blue Laser Hybrid Welder with ±0.5% Power Stability - Ideal for Automobile Industry Sample:

Shen Zhen HanWei Laser Enterprise and Feature:

Founded in 2016 and based in Shenzhen, Hanwei Laser Equipment Co., Ltd. is a national high-tech enterprise and one of the few global firms to earn the "specialized, sophisticated, distinctive, and novel" designation. Bolstered by a 50-strong team of specialists, the company focuses on the entire laser welding industry chain, with professional expertise spanning the research, development, manufacturing, and marketing of welding lasers, control/optical systems, and related technologies.

Hanwei Laser delivers cutting-edge laser welding technology and high-quality equipment to international laser integrators. Its product portfolio, which includes desktop and portable devices, incorporates advanced technologies such as fiber, pulsed/continuous-wave, blue, diode, and hybrid lasers—all customized to address specific needs. Furthermore, the company offers personalized solutions, training, and support services to ensure clients can fully leverage their laser systems.

Motivated by the mission of making world-class welding technology accessible to all integrators, Hanwei has built an extensive global network. It maintains branches and subsidiaries across Europe, North America, Asia, and the Middle East, providing services to clients worldwide.
