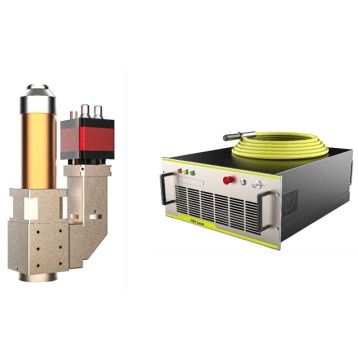

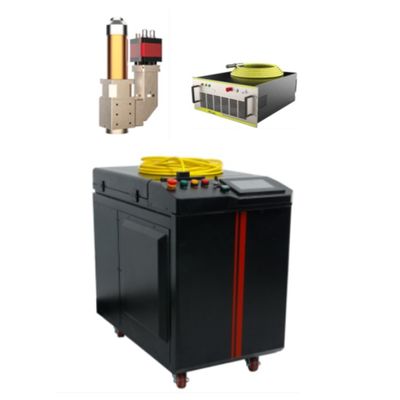

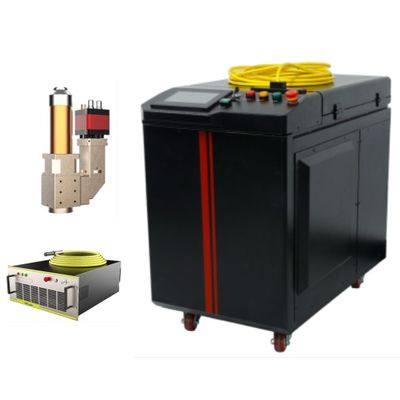

HW QCW Laser Welding Machine with 0.5-50 Pulse Width for High-Reflectivity Copper

HW QCW Laser Welding Machine with 0.5-50 Pulse Width for High-Reflectivity Copper

Nama merek:	HanWei
Nomor Model:	HW-QCW
Moq:	1 set
harga:	USD / Set
Ketentuan Pembayaran:	T/t
Kemampuan Penyediaan:	2000 set / tahun

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Shenzhen, Cina

Sertifikasi:

Kekuatan laser:

150W/300W

Daya puncak:

1500W/3000W

Lebar denyut nadi:

0.5-50

Stabilitas daya:

≤ ± 1%

Energi pulsa:

15J/30J

Frekuensi:

100 Hz/2 kHz

Panjang gelombang:

1070nm ± 10%

Konsumsi daya:

2 kW/2,5 kW

Metode pendinginan:

Pendinginan udara

Tegangan input:

AC220V 50/60Hz

Berat mesin:

22kg/28kg

Ukuran mesin:

665*450*300 mm

Kemasan rincian:

Ekspor Plywood Packing

Menyediakan kemampuan:

2000 set / tahun

Menyoroti:

QCW laser welding machine for copper

industrial laser welder with pulse width

high-reflectivity copper laser welding machine

Deskripsi Produk

HW QCW Laser Welding Machine with 0.5-50 Pulse Width for High-Reflectivity Copper

Quasi-continuous wave (QCW) fiber lasers serve as an optimal solution for industrial applications requiring long pulse durations and high peak power, including spot welding and seam welding. This machine is specifically designed to replace certain YAG laser welding applications, significantly reducing maintenance costs and frequency. Our company is among the few global enterprises capable of independently developing complete software and hardware solutions, including laser high-speed beam splitting systems, energy splitting systems, and time splitting systems.

Key Features

Consistent beam quality across entire power range
High electro-optical conversion efficiency up to 30% for cost-effective, environmentally friendly operation
Excellent output power/energy stability
High peak power capable of processing reflective materials like copper and aluminum
Compact design with forced air cooling system
Multiple output modes including QCW (quasi-continuous wave), PWM (pulse width modulation), and CW (continuous wave) with built-in soft rise/fall functions

Technical Specifications

Model	HW-Q-150	HW-Q-300
Input Voltage	AC220V 50/60Hz	AC220V 50/60Hz
Machine Size	665450300 mm	665450300 mm
Pulse Width	0.5-50	0.5-50
Frequency	100 Hz	2 KHz
Machine Weight	22 Kg	28 Kg
Laser Power	150 W	300 W
Peak Power	1500 W	3000 W
Wavelength	1070nm ± 10%	1070nm ± 10%
Cooling Method	Air Cooling	Air Cooling
Power Stability	≤ ± 1%	≤ ± 1%
Power Consumption	2 Kw	2.5 Kw
Pulse Energy	15 J	30 J

Applications

High-precision component welding in consumer electronics
Versatile processing for diverse product types
Ideal for 3C products and precision welding applications
Cost-effective solution with high efficiency

Shenzhen Hanwei Laser Enterprise

Shenzhen Hanwei Laser is committed to making world-class laser welding technology accessible to all integrators. As a nationally certified high-tech enterprise with "specialized, sophisticated, distinctive, and novel" recognition, we specialize in full-industry-chain R&D, production, and sales of welding-specific lasers and related systems.

Product Portfolio

Ring-Spot laser welding machines
Blue laser welding machines
Hybrid welding systems (blue laser + fiber, Diode + fiber, YAG + Diode)
YAG and Diode laser welding machines
Mold repair laser welding machines
QCW laser welding machines
Supporting control systems, optical systems, and peripherals

With a philosophy centered on R&D, technological excellence, and customer service, we serve B2B clients with reliable quality, continuous innovation, and comprehensive lifecycle support. Our team of experienced professionals possesses deep expertise in laser development, systems design, power supplies, control technology, optical engineering, and welding processes.

Hanwei products are widely used across industries including new energy batteries, automotive, electronics, communications, medical devices, jewelry, and more, delivering unmatched welding performance in many applications.
